Current Transformers

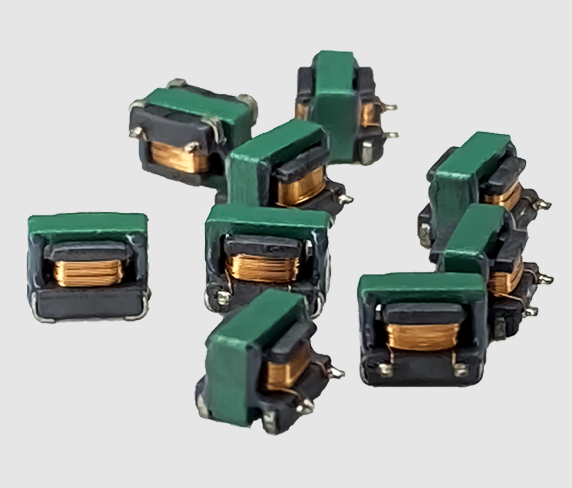

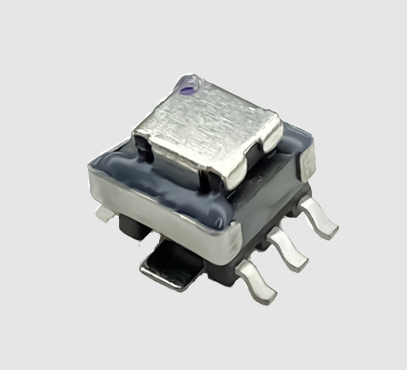

Our current transformers are designed for operating frequencies from 50 kHz to 1 MHz, offering a variety of turn ratios to suit diverse applications. These transformers are ideal for use in switch-mode power supplies, feedback controllers, overload sensing, and load reduction/shutdown detection.

Features:

• Wide Frequency Range: Suitable for high-frequency applications from 50 kHz to 1 MHz.

• Multiple Turn Ratios: Provides flexible design options to meet various current measurement needs.

• High Accuracy: Ensures precise current measurement, enhancing system performance.

• Compact Design: Saves space, ideal for high-density circuit boards.

Applications:

• Switch-mode power supplies

• Feedback controllers

• Overload sensing

• Load reduction/shutdown detection

Product Series:

• TCT042

• TCT050A

• TCT050

Benefits:

• High reliability

• Accurate current measurement

• Flexible design options

Additional information about Current Transformers:

• Working principle:

• Current transformers operate on the principle of electromagnetic induction, converting a high primary current to a lower secondary current for measurement.

• They consist of a closed magnetic core and windings.

• The primary winding has few turns and is connected in series with the current to be measured, while the secondary winding has more turns and is connected to measuring instruments and protection circuits.

• Main functions:

• Current transformers primarily provide secondary currents for protection and measurement, effectively isolating secondary electrical equipment from high-voltage devices, ensuring operator safety.

• They also enable the standardization and miniaturization of measuring instruments and relays, allowing for long-distance measurement with smaller wires and cables.

• In the event of a high-voltage circuit fault, current transformers protect measuring instrument current coils from damage caused by high currents.

• Important considerations:

• The secondary circuit of a current transformer must always be closed during operation.

• The secondary circuit of a current transformer must never be left open.

This product information is intended to provide a general overview. For detailed specifications and application notes, please refer to the individual product datasheets.
