Plug-in high current inductor

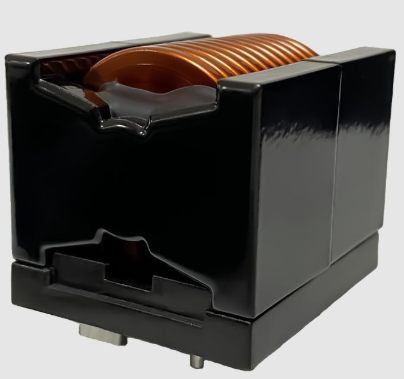

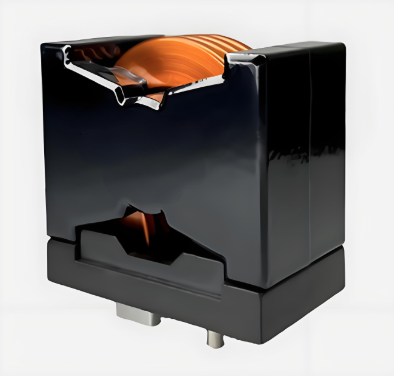

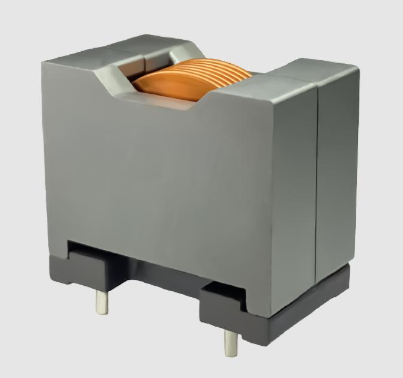

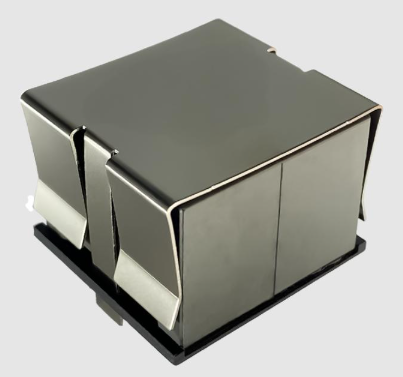

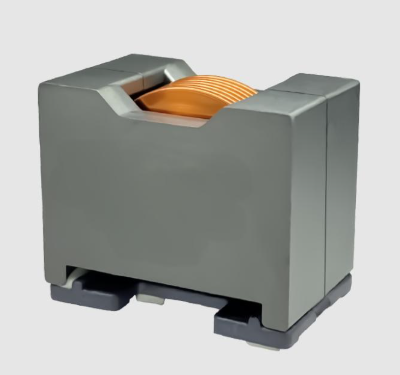

High Current Inductors - Through-Hole, Flat Wire Design

Our through-hole, flat wire inductors feature a shielded construction for low radiation and offer high current capabilities with low resistance. These inductors are suitable for a wide range of applications.

Key Features:

• Flat Wire Construction: Enables high current handling and low DC resistance.

• Shielded Design: Minimizes electromagnetic interference (EMI).

• Through-Hole Mounting: Provides robust mechanical connection to the PCB.

• Wide Inductance Range: Available in various inductance values to meet diverse circuit requirements.

Product Series and Inductance Values:

• TPD2923 Series: 3.3 - 33 μH

• TPD2923B Series: 3.3 - 33 μH

• TPD3521: 1.5 - 3.3 μH

• TPD3540: 6.8 - 47 μH

• TGPM4233 Series: 3.3 - 470 μH

Applications:

• Power supplies

• DC-DC converters

• EMI filtering

• Automotive electronics

• Industrial equipment

Benefits:

• High efficiency

• Compact size

• Reliable performance

This product information is intended to be a general overview. For detailed specifications and application notes, please refer to the individual product datasheets.
