Power Line Chokes

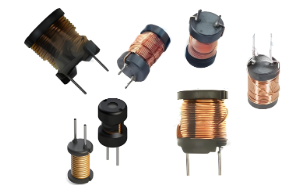

Power Line Chokes Product Introduction

Our Power Line Chokes series is a high-performance solution engineered to suppress electromagnetic interference (EMI) and ensure stable power delivery across a diverse range of electronic applications. These chokes are designed with precision to provide exceptional noise filtering, signal integrity, and current stability, making them an ideal choice for telecommunications, industrial systems, consumer electronics, and power management applications.

Key Features and Specifications

• Impedance Options: Available in 50Ω and 75Ω configurations, catering to various system requirements.




• Channel Configurations: Offered in 2-way, 3-way, and 4-way designs, providing flexibility for different circuit layouts.




• Wide Frequency Range: Operates effectively from minimum frequencies as low as 1 MHz to maximum frequencies up to 3250 MHz, ensuring robust performance across low- and high-frequency bands.




• Performance Metrics:


• Input Return Loss (RL): Ranges from 5 dB to 38 dB, minimizing signal reflection for efficient power transfer.




• Insertion Loss (IL): Low values from 0.28 dB to 4.5 dB, reducing signal attenuation and enhancing system efficiency.




• Isolation: Provides 12 dB to 35.48 dB of isolation between channels, effectively reducing crosstalk and interference.






• Compact Packaging: Available in multiple package sizes, such as B008, B015, B032, and larger formats like 60x51 mm, accommodating space-constrained designs and diverse installation needs.




• High Current Capacity: Supports saturation currents (Isat) up to 75 A and RMS currents (Irms) up to 57 A, ideal for high-power applications.




• Power over Ethernet (PoE) Support: Select models support PoE-af, PoE-bt (up to 90W), and 4PPoE, with high-voltage isolation options (e.g., 1500VAC/1mA/60s or 5000VAC/1mA/2s) for enhanced safety in power-delivery systems.

Performance Highlights

• 2-Way Chokes:


• 50Ω (B008): 5–1000 MHz, RL 38 dB, IL 0.28 dB, Isolation 28 dB




• 75Ω (B008): 5–1250 MHz, RL 20 dB, IL 1.2 dB, Isolation 20 dB






• 3-Way and 4-Way Chokes:


• B115 (3-way): RL 38 dB, IL 0.28 dB, Isolation 28 dB




• Quad-port models (Pin No. 72 or 96): Support up to 90W PoE with excellent crosstalk and CMR performance (-30 dB at 100 MHz)






• High-Current Models:


• Inductance from 0.7 µH to 257 µH, DCR as low as 0.55 mΩ, and Isat up to 75 A, tailored for power-intensive applications.

Applications and Benefits

Our Power Line Chokes are optimized for environments where EMI suppression, signal integrity, and power stability are paramount. Key applications include:

• Telecommunications: Ensures reliable signal transmission in LAN, WAN, and broadband equipment.




• Industrial Systems: Delivers robust noise suppression for automation and control systems.




• Consumer Electronics: Enhances performance in devices such as routers, switches, and IP cameras.




• Power Management: Perfect for DC-DC converters, server power supplies, and voltage regulation.

With low insertion loss, high isolation, and exceptional current-handling capabilities, these chokes ensure peak performance in both high-frequency and high-power scenarios.

Why Choose Our Power Line Chokes?

• Versatility: A broad selection of impedance, configuration, and package options to meet any application need.




• Superior Performance: Outstanding noise suppression, minimal loss, and high current capacity.




• Reliability: Engineered for consistent, high-quality operation in challenging conditions.

Elevate your electronic designs with our Power Line Chokes—your trusted partner for advanced EMI suppression, power stability, and uncompromising performance.
