Power Splitters/Dividers/Combiners

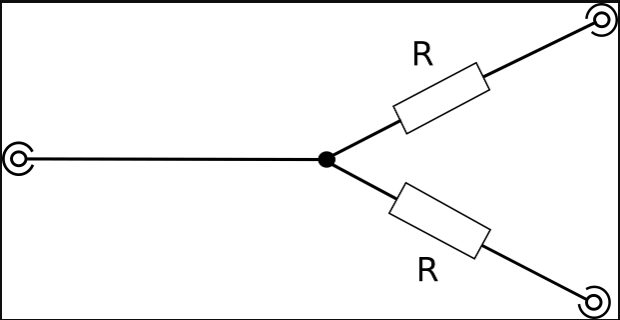

Power Splitter Divider Product Introduction

Introducing our Power Splitter Divider series: a high-performance and versatile solution for RF signal distribution, tailored to meet the demands of telecommunications, broadcasting, satellite communication, and test equipment applications. Engineered for precision and reliability, this series offers a range of configurations and specifications to ensure optimal signal integrity and minimal loss across diverse system requirements.

Features and Specifications

• Configurations and Impedance Options: Available in 2-way and 3-way configurations, with impedance options of 50Ω and 75Ω, providing flexibility to suit various system designs.

• Wide Frequency Coverage: Supports a broad frequency range starting as low as 5 MHz and extending up to 3250 MHz (3.25 GHz), depending on the model. Examples include:


• 50Ω 2-way (B008 package): 5 MHz to 1000 MHz

• 75Ω 2-way (B008 package): 5 MHz to 1250 MHz

• Other models reaching up to 2610 MHz or 3250 MHz






• Exceptional Performance Parameters:


• Input Return Loss (RL): Ranges from 5 dB to 38 dB, ensuring efficient power transfer with minimal reflection.

• Insertion Loss (IL): Low values from 0.28 dB to 4.5 dB, minimizing signal attenuation across outputs.

• Isolation: Robust isolation between output ports, ranging from 12 dB to 35.48 dB, reducing interference and enhancing signal clarity.

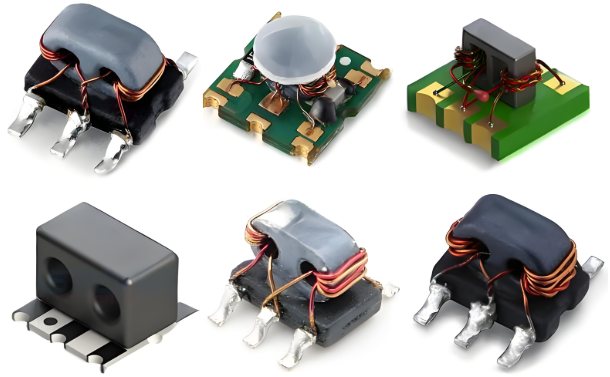

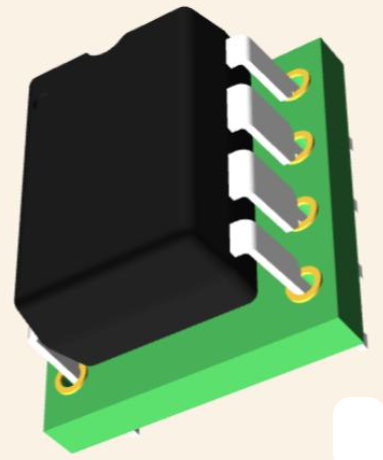

• Compact and Varied Packaging: Offered in multiple package sizes, such as B008, B015, B032, B108, B115, and larger formats like 60x51, catering to different space and installation needs.

Performance Highlights

• 2-Way Splitters:


• 50Ω (B008): 5–1000 MHz, RL 20 dB, IL 1.2 dB, Isolation 20 dB

• 75Ω (B008): 5–1250 MHz, RL 20 dB, IL 1.2 dB, Isolation 20 dB

• Advanced models (e.g., B032, 75Ω): 40–2050 MHz, RL 20 dB, IL 0.5 dB, Isolation 25 dB






• 3-Way Splitters:


• B115 package: RL 38 dB, IL 0.28 dB, Isolation 28 dB, ideal for high-precision multi-output applications.

• These metrics ensure stable, high-quality signal distribution even in demanding high-frequency environments.

Applications and Benefits

Designed for versatility, our Power Splitter Divider series excels in wireless base stations, CATV systems, satellite communications, and laboratory testing. Its compact design and ease of integration make it a seamless fit for modern electronic systems, while its low insertion loss and high isolation guarantee maximum system performance. Whether you need to split signals with minimal distortion or maintain reliability across a wide frequency spectrum, this series delivers exceptional results.

Why Choose Our Power Splitter Divider?

• Reliability: Engineered for consistent performance and high signal integrity.

• Flexibility: Multiple configurations and impedance options to match your specific needs.

• Efficiency: Low loss and high isolation for superior signal distribution.

Elevate your RF signal management with our Power Splitter Divider series—your solution for precision, performance, and adaptability in any application.
