TPG73 0.13μH-2μH

Flat wire, surface-mount type.
Closed magnetic circuit packaging, low radiation.
High current, low resistance.
Operating temperature: -40°C to +125°C.
Reel packaging: -40°C to +80°C.
Withstand soldering heat - up to three 40-second reflows at +260°C, with the component cooled to room temperature between cycles.
Moisture Sensitivity Level (MSL) 1 (infinite floor life at <30°C / 85% relative humidity).

Product Applications

High-efficiency DC/DC converters
Single-phase and multiphase buck converters
Audio filtering applications
Optimized for high-current boost applications

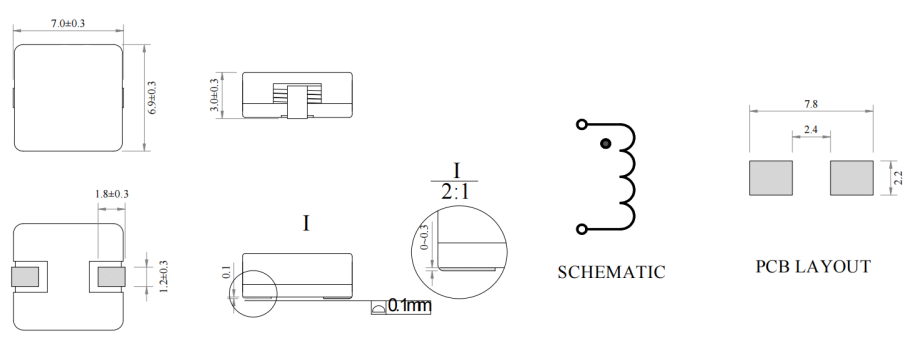

Part number	Inductance (μH)	DCR (mΩ)	Isat (A)	Irms (A)	SRF (MHz)	Length (mm)	Width (mm)	Height (mm)
TPG73 - 131ML	0.13	1	16	21	400	6.9±0.3	7.0±0.3	3.0±0.3
TPG73 - 241ML	0.24	2	18	16	220	6.9±0.3	7.0±0.3	3.0±0.3
TPG73 - 521ML	0.52	4.07	8.5	13	140	6.9±0.3	7.0±0.3	3.0±0.3
TPG73 - 951ML	0.95	6.8	6	11.5	90	6.9±0.3	7.0±0.3	3.0±0.3
TPG73 - 112ML	1.1	9.5	7.5	8.5	84	6.9±0.3	7.0±0.3	3.0±0.3
TPG73 - 152ML	1.5	14	8	6.8	80	6.9±0.3	7.0±0.3	3.0±0.3
TPG73 - 202ML	2	15.6	5	6.2	58	6.9±0.3	7.0±0.3	3.0±0.3

Remarks:

① The inductance is measured by an Agilent 4284A digital bridge or equivalent instrument at a test frequency of 100KHz.
② The DC resistance is measured by a Keithley 580 milliohm - meter or equivalent instrument at an ambient temperature of 25°C.
③ The SRF (Self - Resonant Frequency) is measured by using an Agilent 4395A network analyzer and an Agilent 16193A test fixture.

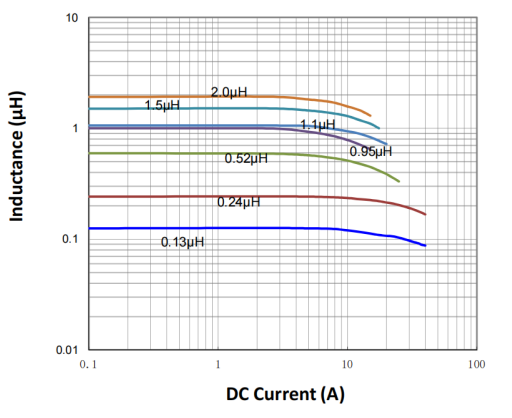

④ For the DC current at 25°C, loading causes the specified inductance to drop from its no - current value.
⑤ The current causes the specified temperature to rise from the 25°C ambient temperature. This information is for reference only and does not represent the absolute maximum rating.
⑥ Electrical specifications at 25°C.
