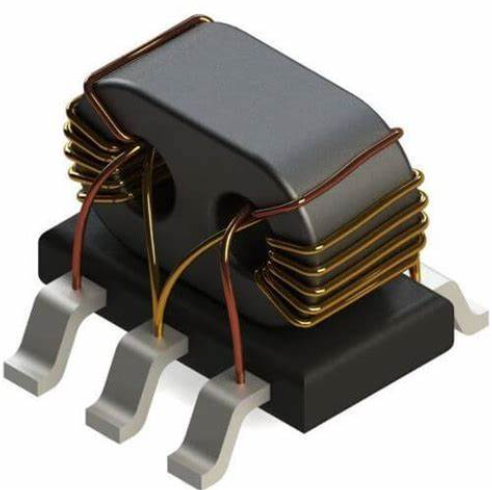

Balun Transformers

Balun transformers are radio frequency transformers designed for converting between balanced and unbalanced signals. They are essential components in a variety of RF circuits, facilitating the connection of devices with differing impedance and signal types, ensuring efficient and intact signal transmission.

Advantages:

• Balanced-to-Unbalanced Conversion:

• Transforms balanced signals (e.g., twisted pair) to unbalanced signals (e.g., coaxial cable) and vice versa.

• Impedance Matching:

• Matches circuits with different impedances, minimizing signal reflection and loss.

• Isolation:

• Provides electrical isolation, preventing ground loops and noise interference.

• Wide Bandwidth:

• Suitable for broadband applications, supporting a range of frequency bands.

• Miniaturization:

• Utilizes advanced manufacturing processes for miniaturization and high integration.

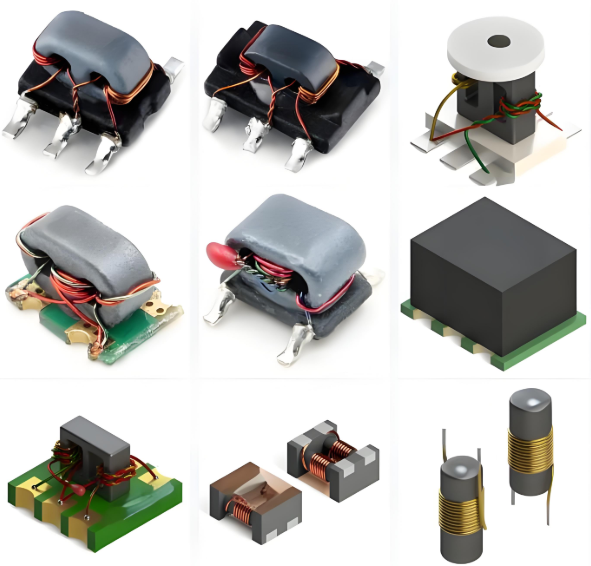

• Various Packages:

• Available in surface mount and through-hole packages, catering to diverse application needs.

Applications:

• Wireless Communications: Antenna connections, RF front-ends

• Cable Television: Cable modems, set-top boxes

• Network Communications: Ethernet, LAN

• Radio Frequency Identification (RFID): Readers, antennas

• Test and Measurement: Signal generators, spectrum analyzers

Product Features Summary:

• Balanced-to-unbalanced signal conversion

• Impedance matching

• Electrical isolation

• Wide bandwidth characteristics

• Miniaturized design

• Multiple packaging options

Product Goal:

Our Balun Transformer series is dedicated to providing customers with high-performance, reliable RF solutions, meeting the signal conversion and impedance matching needs of various RF circuits.
